STANDARD LENGTH OF 3000MM or add in another cabinet 3600mm long x 800mm deep x 950mm high
recessed 50mm shadow line around the base
recessed 20mm shadow line under the benchtop
large heavy duty hinged doors using BLUM soft close hinges bolted into an aluminium strip recessed into the joinery
carcass
16mm PVC wetboard joinery carcass with single shelf in each cupboard

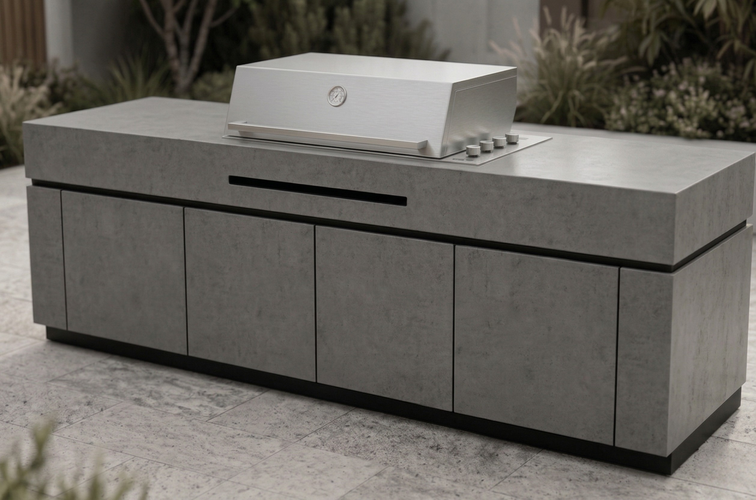

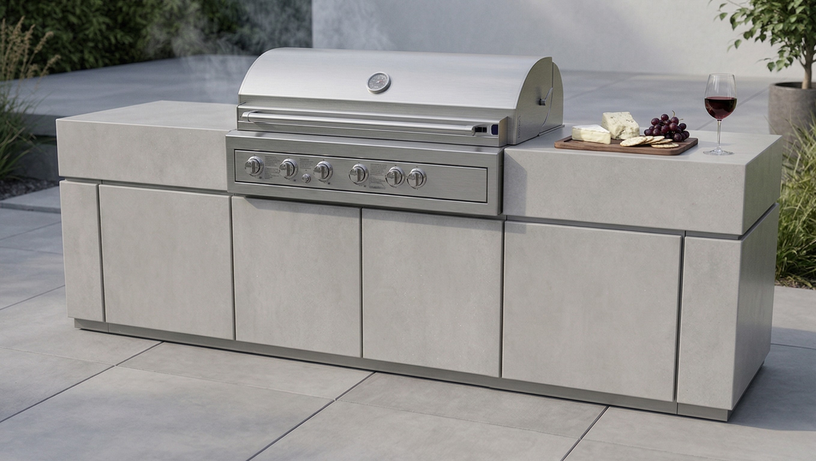

This BBQ units suits the heavy duty large stainless steel BBQ units with front burners, You can also select the style to
suit the Beefeater Proline, Artusi or Tucker Horizon BBQ units that have a cutout in the benchtops

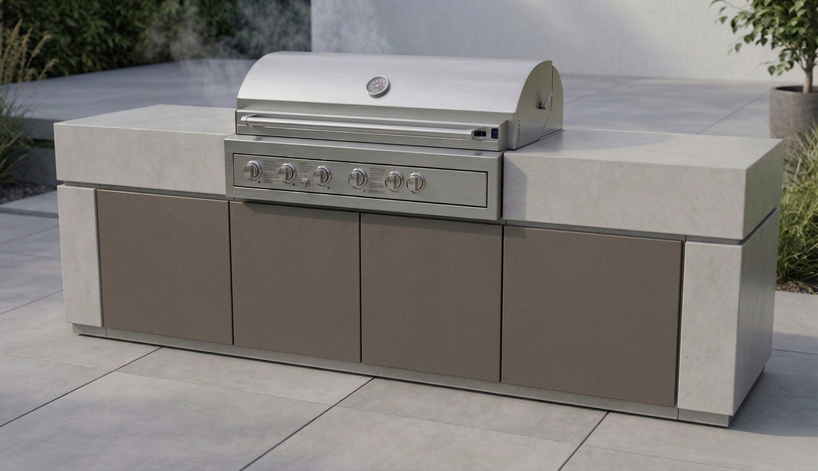

ECC Polished concrete benchtops and end panels with options for either concrete door panels or powder coated
aluminium doors.
Perfect for outdoor use with the abilty to hose and not damage your BBQ unit.
Minimal maintenance and easy care.
OPTION FOR 700mm depth benchtop to fit the BEEFEATER PROLINE, ARTUSI or TUCKER HORIZON

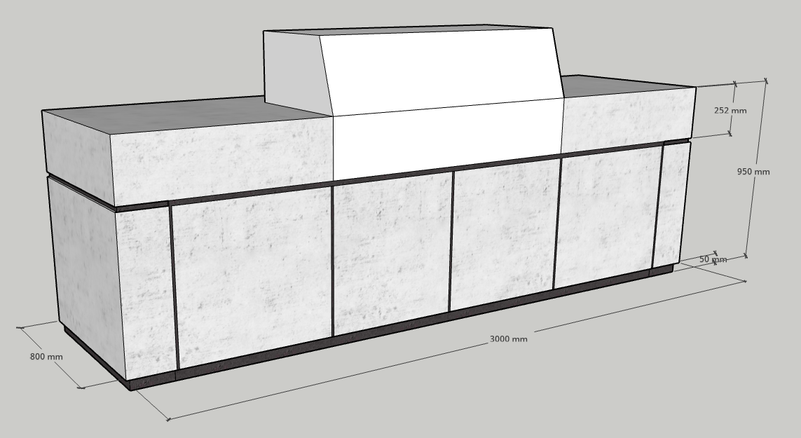

Standard Lengths: 3000mm | 3600mm

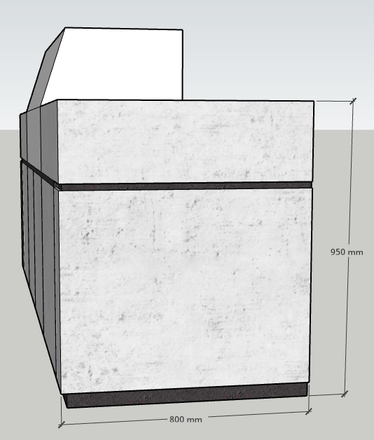

Bench Depth: 800mm OR 700mm deep for top mount BBQ units like the Beefeater Proline
Total Unit Height: 950mm
Concrete Face (Front Profile): 252mm

The Inset: The integrated BBQ sits within a precision cutout, creating a seamless, flush-mount transition
between stainless steel and artisan concrete. This design will suit the Beefeater Proline, ARTUSI and Tucker
Horizon BBQ units as well as the large front controlled BBQ units(Contact us if you have a different BBQ unit)
The Support: Internal 16mm PVC wetboard joinery will support the solid concrete BBQ benchtop and end
panels. The doors will be fixed with soft close hinges with options for a thin polished concrete door front or
powder coated aluminium doors.

Benchtop: Hand-burnished ECC (Engineered Cementitious Composite). Fibre-reinforced for high-tensile
strength and minimal expansion.
Sealant: Stain-resistant penetrating food grade Satin Sealer.
Locally Made: Hand-forged and finished in Australia. Australian materials and Australian labour.

Footing: Must be installed on a level, structurally sound surface (Reinforced Concrete Pad or Decking with
appropriate sub-frame joist reinforcement).
BBQ – you must have your BBQ (Beefeater Proline or whatever BBQ you have purchased) constructed so that
we can fit it into your new Outdoor Kitchen if we are installing
