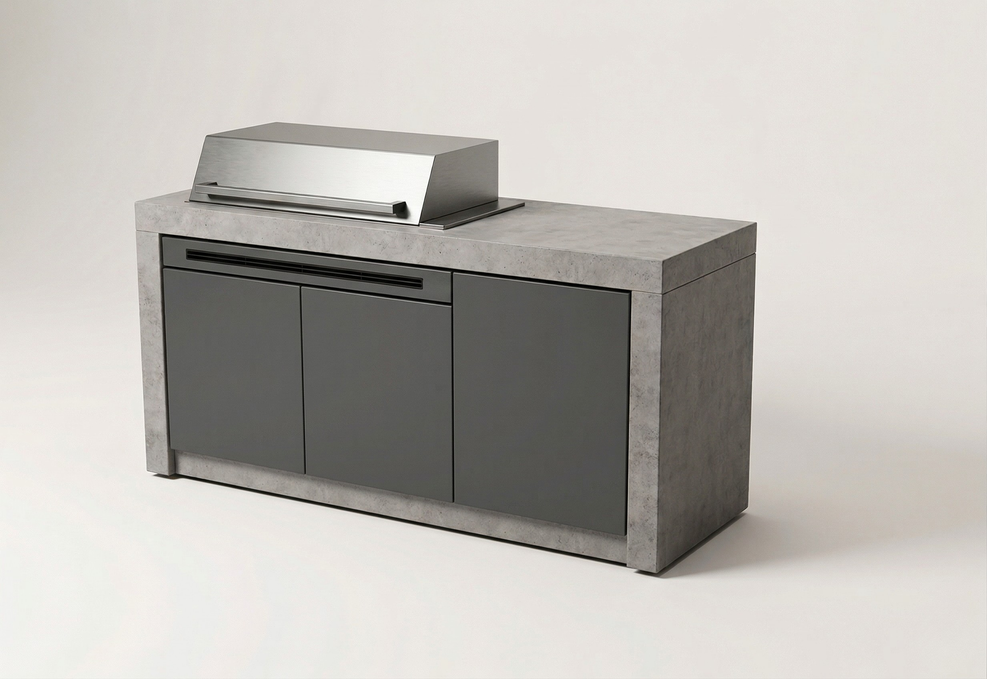

The Meridian BBQ Unit

The Meridian BBQ Unit

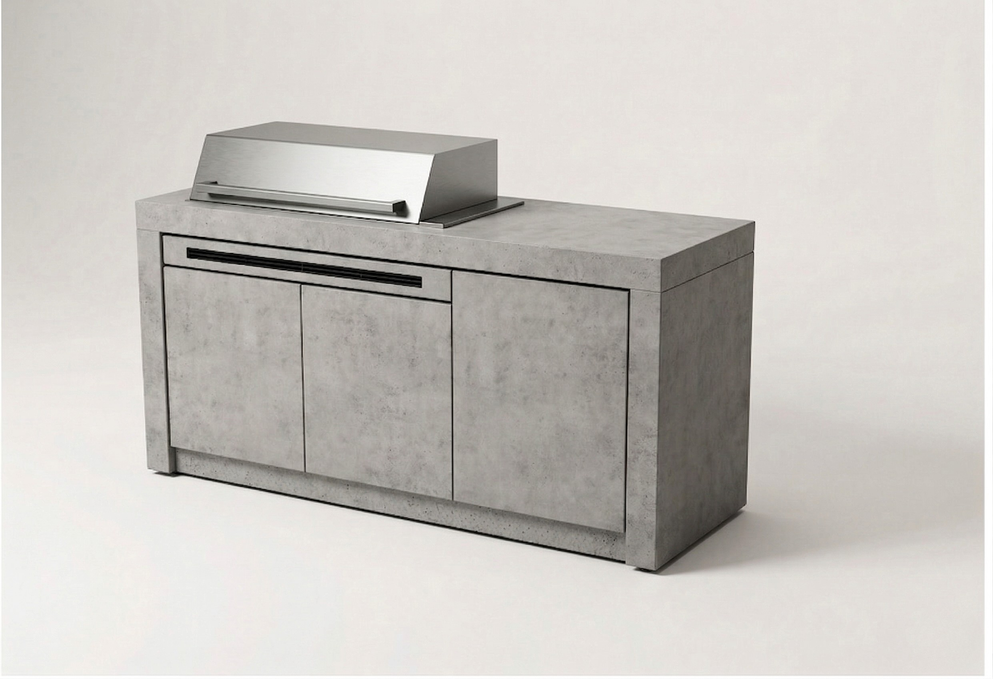

Grounded and monolithic, The Meridian offers a balanced architectural form for outdoor kitchen spaces. The Meridian provides a refined outdoor kitchen foundation with internal carcass options for modular storage and utility integration.

Price range: $6,967.00 through $11,358.00

- +
SKU: N/A Category:
Guaranteed Safe Checkout

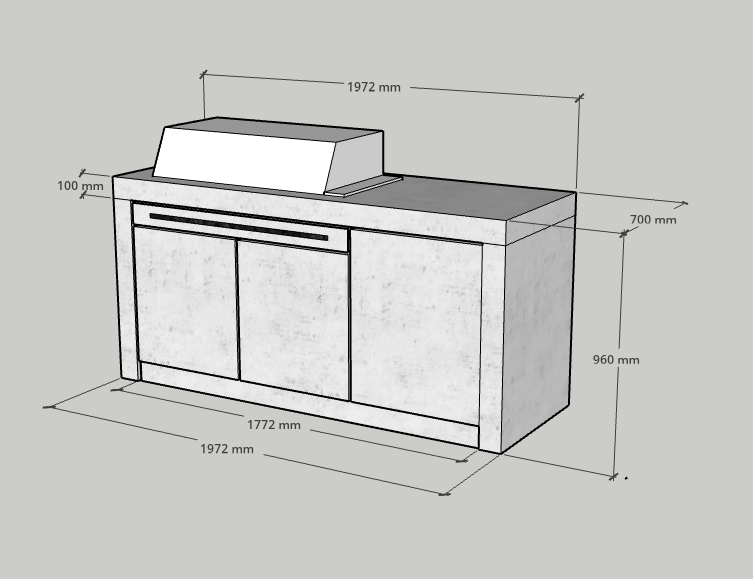

Concrete Components

  • Benchtop: 1972 x 700mm x100mm
  • Waterfall legs: 860 x 700mm with 100mm return on front (x2 of)
  • Door fronts: 568 x 640mm (x2 of)
  • Infill under BBQ: 100 x 1165mm
  • Kickrail: 1165 x 100mm
  • Joinery in 16mm PVC wetboard with single shelf
  • Edge tape to Wetboard seen edges
  • 6 x soft close BLUM hinges
  • Aluminium Strip run on outer side face of joinery to fix hinges
  • Aluminium tube run across top of doors in joinery carcass for additional strength
  • Fibre Cement shell under BBQ unit for heat protection

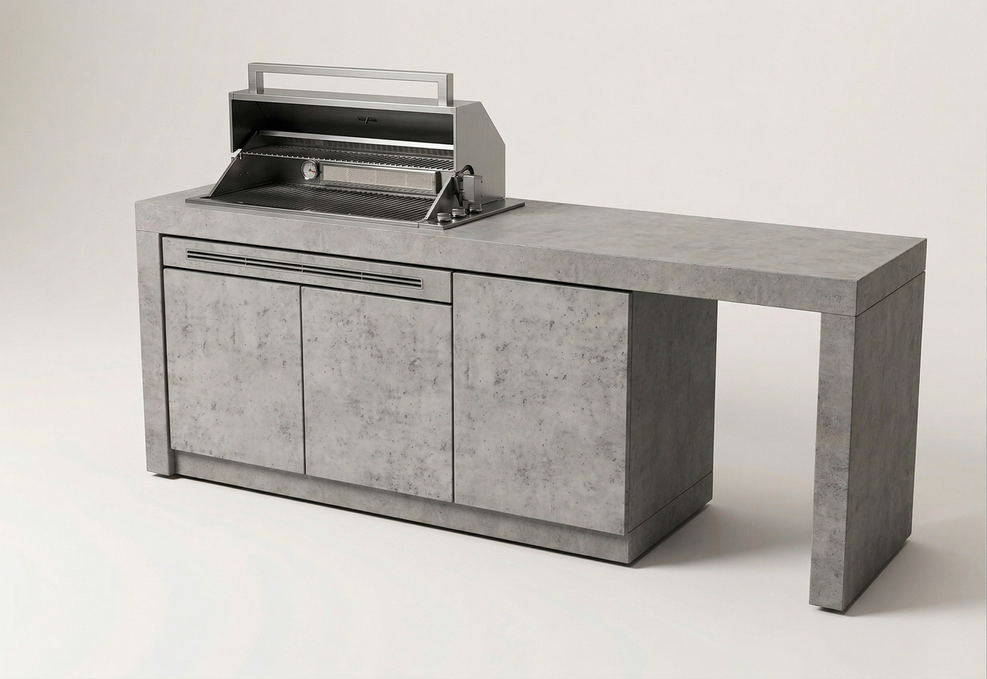

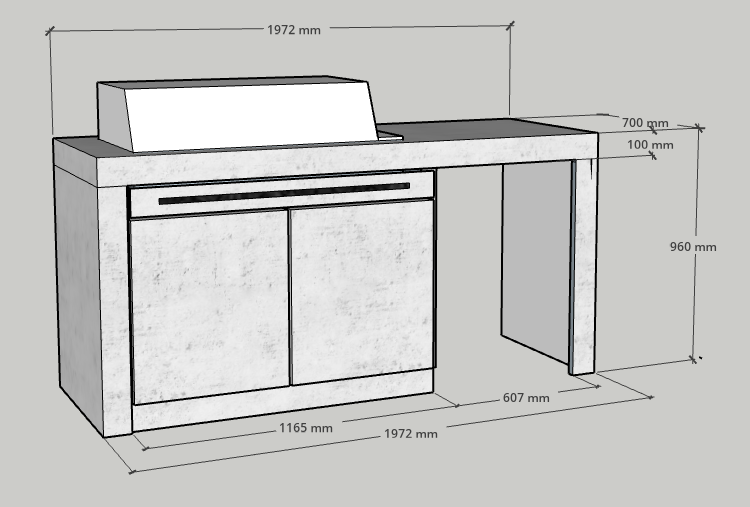

Concrete Components

  • Benchtop: 1972 x 700mm x100mm
  • Waterfall legs: 860 x 700mm with 100mm return on front (x2 of)
  • Door fronts: 568 x 640mm (x2 of)
  • 607 x 760mm (x1 of)
  • Infill under BBQ: 100 x 1165mm
  • Kickrail: 1772 x 100mm
  • Joinery in 16mm PVC wetboard with single shelf
  • Edge tape to Wetboard seen edges
  • 9 x soft close BLUM hinges
  • Aluminium Strip run on outer side face of joinery to fix hinges
  • Aluminium tube run across top of doors in joinery carcass for additional strength
  • Fibre Cement shell under BBQ unit for heat protection

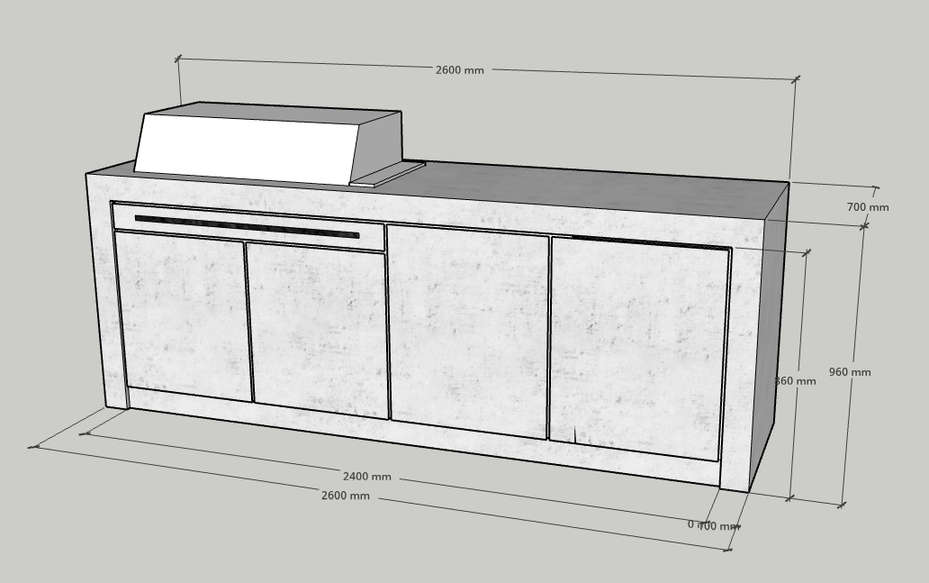

Concrete Components (2600)

  • Benchtop: 2600 x 700mm x100mm
  • Waterfall legs: 860 x 700mm with 100mm return on front (x2 of)
  • Door fronts: 568 x 640mm (x2 of)
  • 607 x 760mm (x2 of)
  • Infill under BBQ: 100 x 1165mm
  • Kickrail: 2400 x 100mm
  • Joinery in 16mm PVC wetboard with single shelf
  • Edge tape to Wetboard seen edges
  • 12 x soft close BLUM hinges
  • Aluminium Strip run on outer side face of joinery to fix hinges
  • Aluminium tube run across top of doors in joinery carcass for additional strength
  • Fibre Cement shell under BBQ unit for heat protection

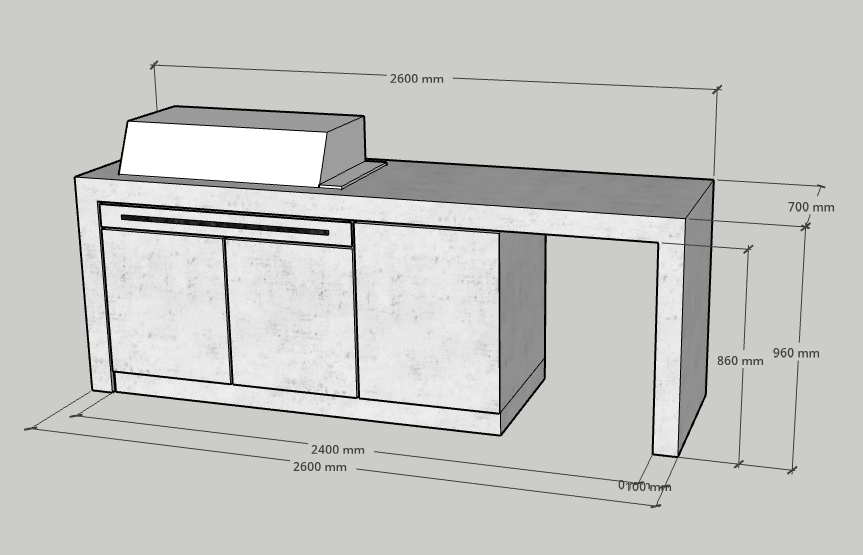

Concrete Components (2600)

  • Benchtop: 2600 x 700mm x100mm
  • Waterfall legs: 860 x 700mm with 100mm return on front (x2 of)
  • Door fronts: 568 x 640mm (x2 of)
  • 607 x 760mm (x1 of)
  • Infill under BBQ: 100 x 1165mm
  • Kickrail: 1772 x 100mm
  • Joinery in 16mm PVC wetboard with single shelf
  • Edge tape to Wetboard seen edges
  • 9 x soft close BLUM hinges
  • Aluminium Strip run on outer side face of joinery to fix hinges
  • Aluminium tube run across top of doors in joinery carcass for additional strength
  • Fibre Cement shell under BBQ unit for heat protection

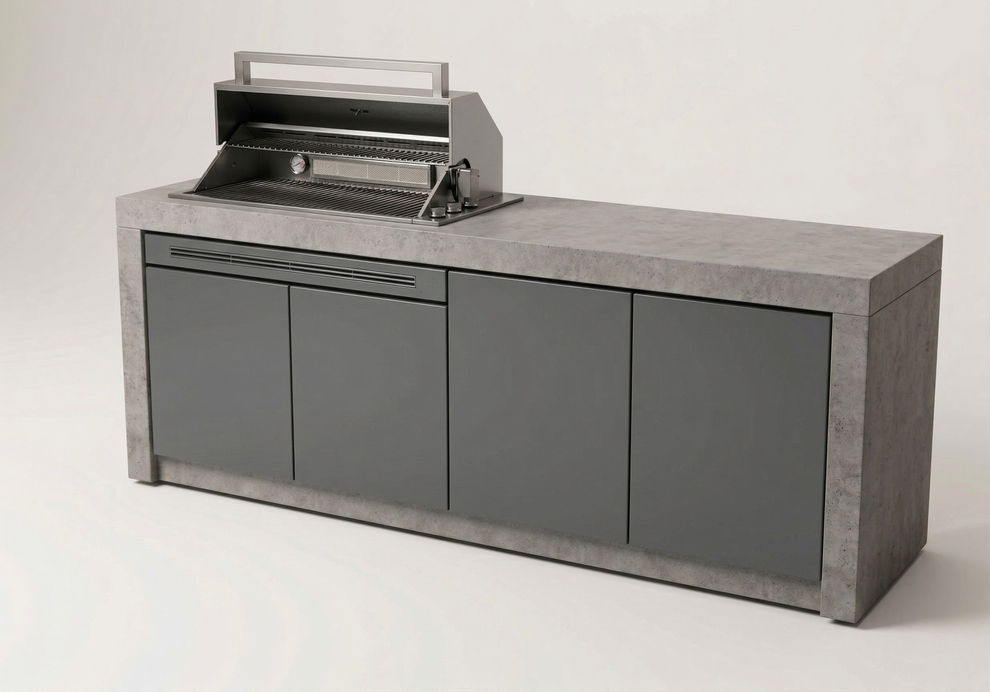

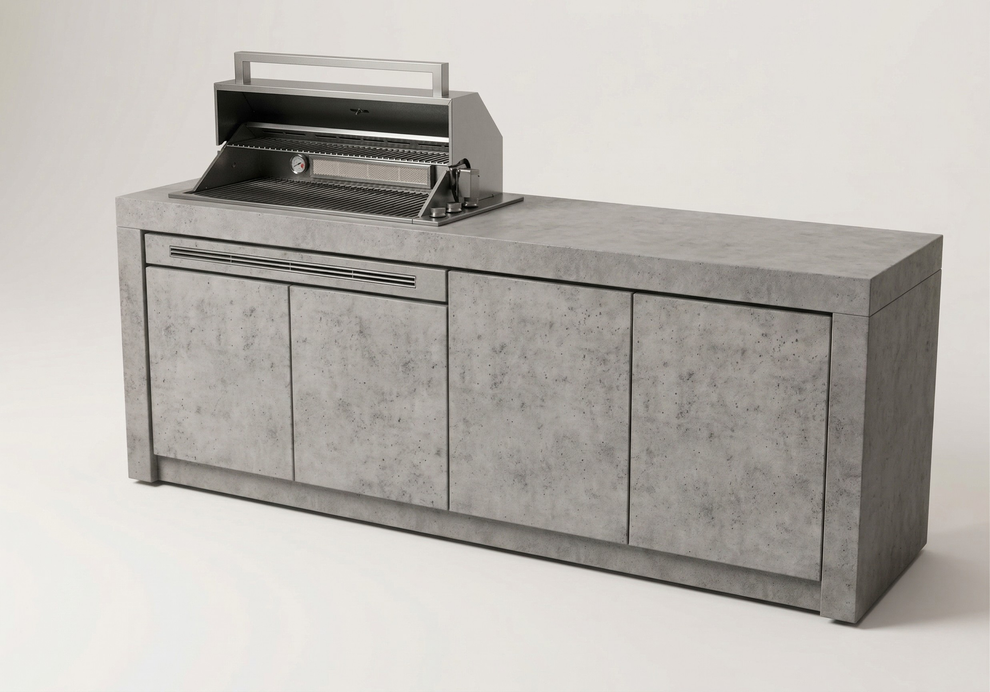

Standard Lengths: 1972mm | 2600mm
Bench Depth: 700mm deep for top mount BBQ units like the Beefeater Proline
Total Unit Height: 960mm
Concrete Face (Front Profile): 185mm

The Inset: The integrated BBQ sits within a precision cutout, creating a seamless, flush-mount transition between stainless steel and artisan concrete. This design will suit the Beefeater Proline, ARTUSI and Tucker Horizon BBQ units as well as the large front controlled BBQ units(Contact us if you have a different BBQ unit)
The Support: Internal 16mm PVC wetboard joinery will support the solid concrete BBQ benchtop and end panels. The doors will be fixed with soft close hinges with options for a thin polished concrete door front or powder coated aluminium doors.
Encasement: A fibre cement sheet encasement will be built to surround the underside of the BBQ for heat protection

Benchtop: Hand-burnished ECC (Engineered Cementitious Composite). Fibre-reinforced for high-tensile strength and minimal expansion.
Sealant: Stain-resistant penetrating food grade Satin Sealer.
Locally Made: Hand-forged and finished in Australia. Australian materials and Australian labour.

Footing: Must be installed on a level, structurally sound surface (Reinforced Concrete Pad or Decking with appropriate subframe joist reinforcement).
BBQ – you must have your BBQ (Beefeater Proline or whatever BBQ you have purchased) constructed so that we can fit it into your new Outdoor Kitchen if we are installing

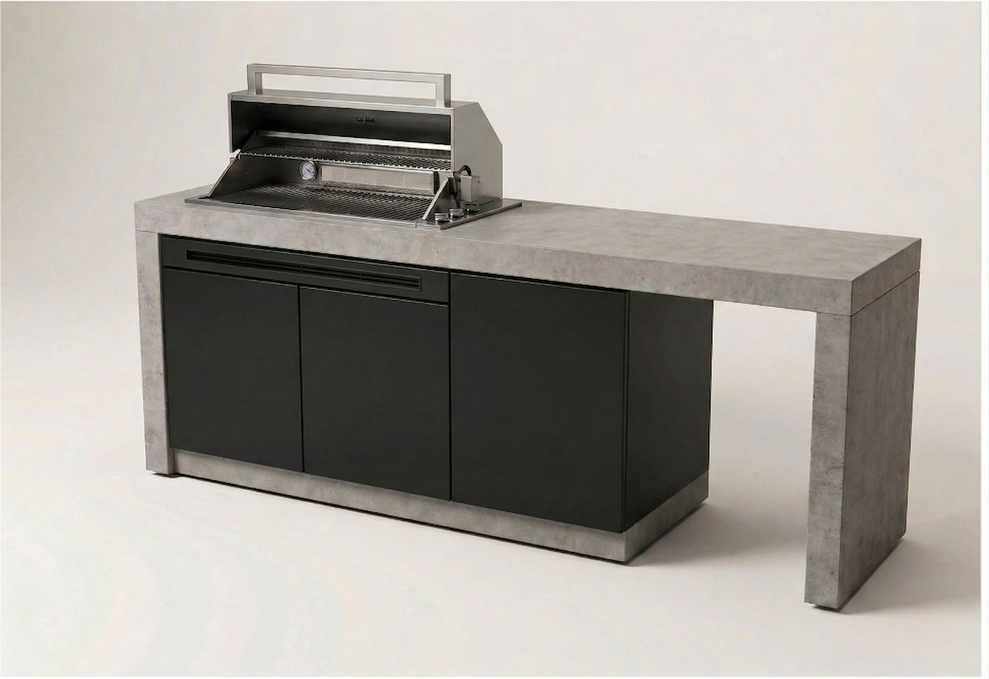

Door Front Type

Concrete Door Fronts, Powder Coated Door Fronts

Configuration

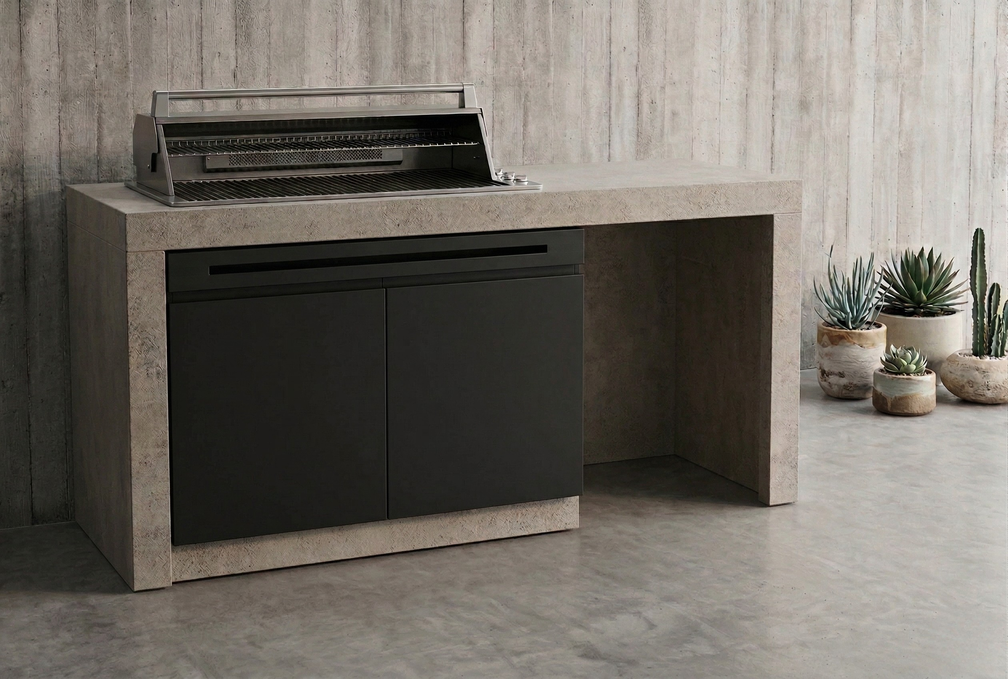

Single Door Bar Fridge Opening, Full Joinery

Model / Size

1972, 2600
