Mounting & Substrate Integration
We offer three primary internal casting options to suit your stringer design:

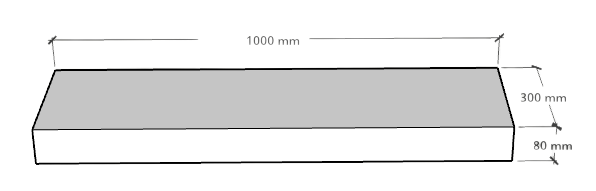

The Standard Tread: A clean, simple rectangle tread that can be bolted or glued down to the stair substrate.
The “Sleeve” Mount: For cantilevered steel “spigot” designs. We cast an internal void/sleeve into the tread, allowing it to slide over a structural steel blade or RHS member.
– PLEASE NOTE THIS IS A CUSTOM OPTION , Click here
The “Bolt-Down” Threaded Rod: Integrated threaded rods cast into the underside for direct fixing to flat-plate steel stringers.
The “Tray” Inlay: Treads designed with a recessed to fit flush on a steel or timber “tray”
.
Safety & Compliance
Slip Resistance: Treads can be cast with integrated “Nosing” grooves or acid-etched to achieve specific P3 or P4 slip ratings for residential and commercial compliance. (CUSTOM OPTION)
Edge Detail: Standard 2mm pencil edge to prevent chipping, or custom radius edges upon request.
STAIR TREAD

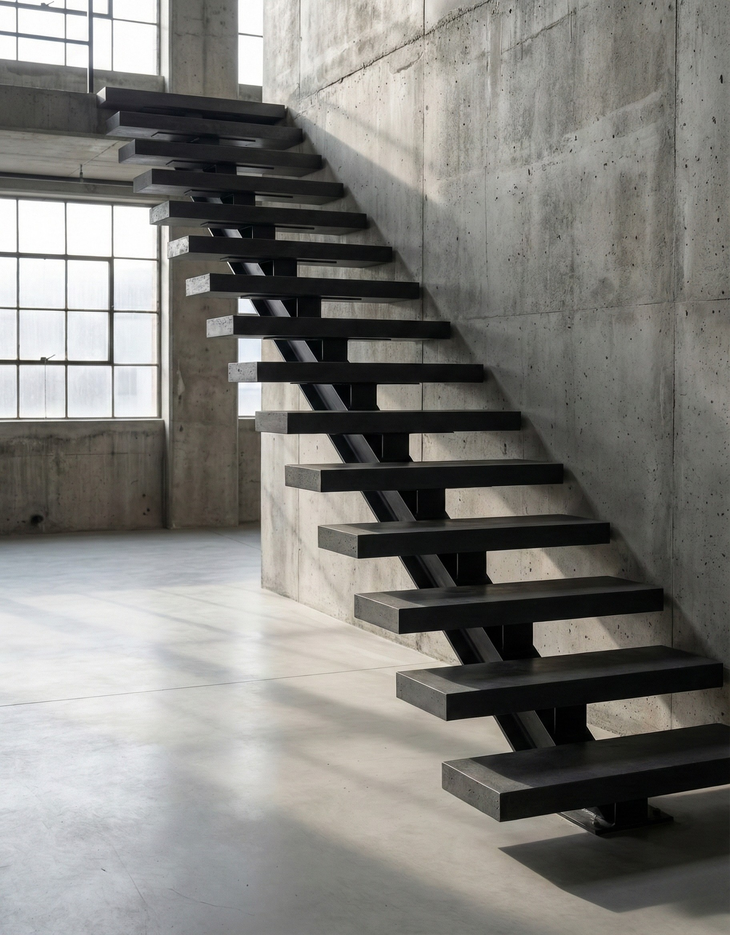

Architectural Stair Tread
At Slabs By Design, we transform the functional necessity of a staircase into a breathtaking architectural feature. Our custom concrete stair treads are designed for those who seek to make a definitive statement, blending the bold, tactile presence of concrete with the precision of modern engineering.
Price range: $500.00 through $1,950.00
| Weight | N/A |
|---|---|
| Type | Tread, Landing |
| Size | 1000 x 250mm / 80mm high, 1000 x 300mm / 80mm high, 1000 x 350mm / 80mm high, 1000 x 1000mm / 80mm high |
